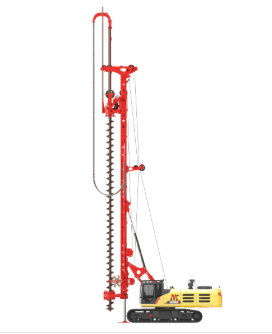

The SANY SR285R-MIII Rotary Drilling Rig is a leading choice for soil and rock construction, offering smooth compound motion with adjustable torque and rotation speed suitable for various terrains and methods. The engines, developed with renowned global partners, fully meet Tier IV/III emission regulations, ensuring reliable and efficient operation with minimal fuel consumption. Its 15m extra-long stroke allows for fast crowding and pulling in beach, pebble, and backfill formations. The inter-lock Kelly bar’s real-time lock position display prevents accidental mishaps, and the constantly tensioned wire rope extends equipment life. The HD touch screen with quick refresh and smooth animations enhances control, while scheduled lubrication keeps the rig running at peak condition.

Parameters

CFA Mode

• Crowd Force- /kN

• Stroke- 18300mm

• Overall Height- 33075mm

• Max. Pile Diameter- 1200mm

• Max. Pile Depth- 25.5m

• Operating Weight- 108T

• Line Pull- 1000kN

• Rated Speed- 5~24rpm

• Rated Output Torque- 285kN·m

Standard Mode

• Crowd Force- 260kN

• Stroke- 17100mm

• Overall Height- 25470mm

• Max. Pile Diameter- 2200mm

• Max. Pile Depth- 94/61m

• Operating Weight- 105T

• Line Pull- 355kN

• Rated Speed- 5~24rpm

• Rated Output Torque- 285kN·m

Main Chassis

• Base Engine- 6WG1

• Engine Power- 300/1800kW/rpm

• Emission Regulation- China Stage III

Low Headroom

• Crowd Force- 260kN

• Stroke- 4600mm

• Overall Height- 11655~13280mm

• Max. Pile Diameter- 2200mm

• Max. Pile Depth- 50m

• Operating Weight- 96T

• Line Pull- 355kN

• Rated Speed- 5~24rpm

• Rated Output Torque- 285kN·m

Overall Machine

• Transport Width- 3475mm

• Transport Height- 3625mm

Main Winch

• Lifting Capacity- 330kN

• Max. Line Speed- 70m/min

• Rope Diameter- 36mm

Price: 311000 AED
