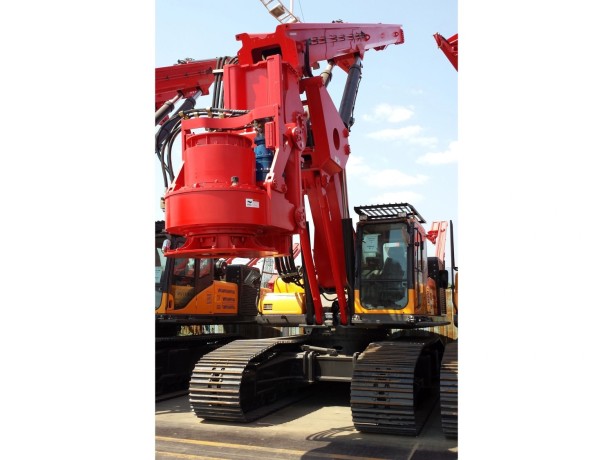

The SR65-C10 is a powerful rotary drilling rig engineered by SANY for high-demand construction tasks. Its robust hydraulics and engine deliver superior drilling speed and stability. Intelligent operation enhances precision and reduces energy costs. The solid build ensures long-lasting performance and minimized downtime. Ideal for deep foundations, it provides excellent reliability in complex projects.

Features-

Efficient and Flexible: They are widely used in civil engineering in deep borehole construction, high main hoist lifting up and down speed, tall verticality of the finished boreholes, and high working efficiency in civil construction.

Special Chassis: Telescopic large widening chassis designed for rotary drilling rig, roller type large diameter slewing bearing to guarantee the high stability in deep borehole construction.

Economical and Energy-saving: Imported large-displacement EFI engine with solid power, adopts power optimization control technology, adjusts power distribution in real time, fast response speed, higher fuel efficiency, and more energy-saving.

High Reliability: The mast adopts a box structure with solid resistance to torsion and fatigue; the sixth-generation Kelly bar adopts upgraded material and strengthened block ring; the overall strength increased by 25% with high drilling ability in the strongly weathered rock layer.

Intelligent Upgrade: 10-inch HD touch screen, fast response, and more convenient operation.

Parameters-

Base Engine: ISUZU 4JJ1

Engine Power: 84/2200kW/rpm

Emission Regulation: China Stage III

Rated Speed: 5~40rpm

Rated Output Torque: 70kN·m

Max. Pile Diameter: 1100mm

Max. Pile Depth: 27/20m

Crowd Force: 110kN

Stroke: 3000mm

Line Pull: 120kN

Overall Height: 12765/8110mm

Operating Weight: 23T

Transport Width: 2700mm

Transport Height: 3410mm

Lifting Capacity: 90kN

Max. Line Speed: 80m/min

Rope Diameter: 20mm
